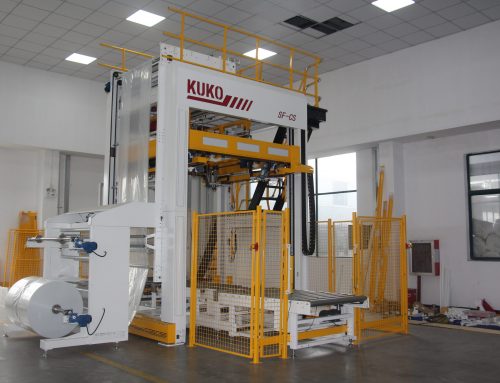

Automatic Cold Stretch Sleeve Packaging Machinery
SF-CS
The maximum capacity is 60-90 pallets per hour (depending on the height of the pallet stack); The bag formed after the top of the film is sealed can be waterproof; It is suitable for transportation, and the stacked items are shrunk tightly together, which can effectively prevent falling off;
1) Maximum capacity of 60-90 pallets per hour (slightly different depending on the height of the pallet build-up);
2) The bag formed after the top of the film is sealed can be waterproof;
3) Suitable for transportation, stack items are shrunk tightly together, which can effectively prevent falling off;
4) Shrink film must be cut to remove the accumulated items, which can reduce the risk of theft;
5) Cold stretch film does not require the use of thermal energy, which can save energy and completely eliminate the risk of fire or explosion;
6) It has both the protective characteristics of heat shrinkable film and the economic characteristics of the rubber film wrapping machine;
7) Different designs can be made according to actual needs;
8) Double-head design, automatically select the most appropriate adhesive film according to the size of the stack;
9) Cold stretch film machine stretch, sleeve film is a cycle operation process;
10) Stable and robust modular design, suitable for continuous operation.
Schematic:
technical parameter:
model | SF-CS |
power | 20KW |
Power supply | AC 380V 3PH 50HZ |
Air source | 6-8 KG/CM2 |
Maximum packing size L×W×H | 1200×1200×1800mm |
packing speed | 60-100 pallets/hour |
maximum load | 3000kgs |
table height | 660±50mm |
Suitable for shrink film | PE stretch sleeve film |
Machine size L×W×H | 6510×4059×4302mm |
Wooden box packing size | 55CBM (One 40HC) |
Gross/Net Weight | 8800/8500kgs |
