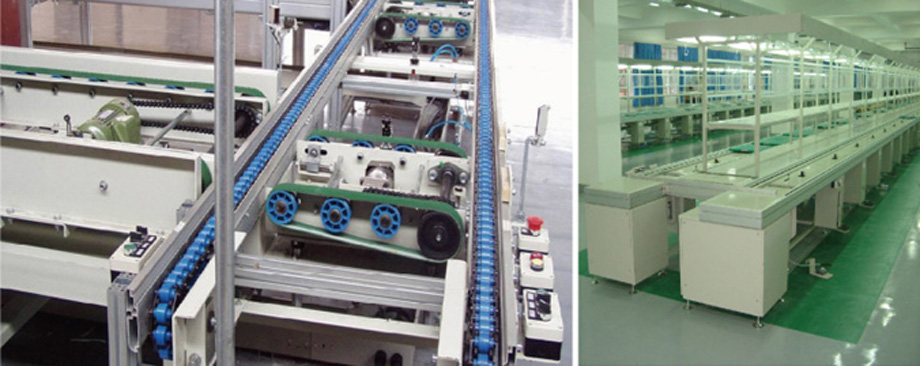

Double speed chain conveyor line
Double speed chain conveyor line is mainly used in product assembly, conveying work site, but also widely used in other industries of conveyor systems and unmanned work site, and can be used as an important peripheral equipment for temporary storage of materials and materials and host equipment for flexible collocation, convenient use.
Live Chat:
Double speed chain conveyor line is mainly used in product assembly, conveying work site, but also widely used in other industries of conveyor systems and unmanned work site, and can be used as an important peripheral equipment for temporary storage of materials and materials and host equipment for flexible collocation, convenient use. The application mainly involves small and medium-sized household appliances, electronics, electrical appliances, mechanical and electrical products, instrumentation, hardware tools, toys, daily chemical and food and other industry products assembly, partial installation, testing, debugging and transportation of assembly line operations.
| Conveying width | 250-900mm |
| Conveying length | The single-segment drive is up to 30-40m long and can be selected by the customer |
| conveying height | Normal 820mm, range 500-1000mm, can be selected by the customer |
| transfer speed | 2-20m/min |
| chain form | Chain and Roller Conveying Constant Velocity - Double Pitch Roller Chains
Chain and roller transmission differential - differential chain (2.5 times speed and 3 times speed) |
| Tooling board type | Steel plate, engineering plastic plate, wood board, nylon, etc |
| frame material | Aluminum profiles, carbon steel, etc |
| Set with dots | The conductor wheel is provided in the wire body, and the conductive row is provided on the tooling board, which can realize live transportation to complete the debugging and testing function |
| Voltage | 220V 1PH 50Hz |
 |
 |
 |
We can customize the machine according to the size of your product!
We can change the configuration according to your requirements!
